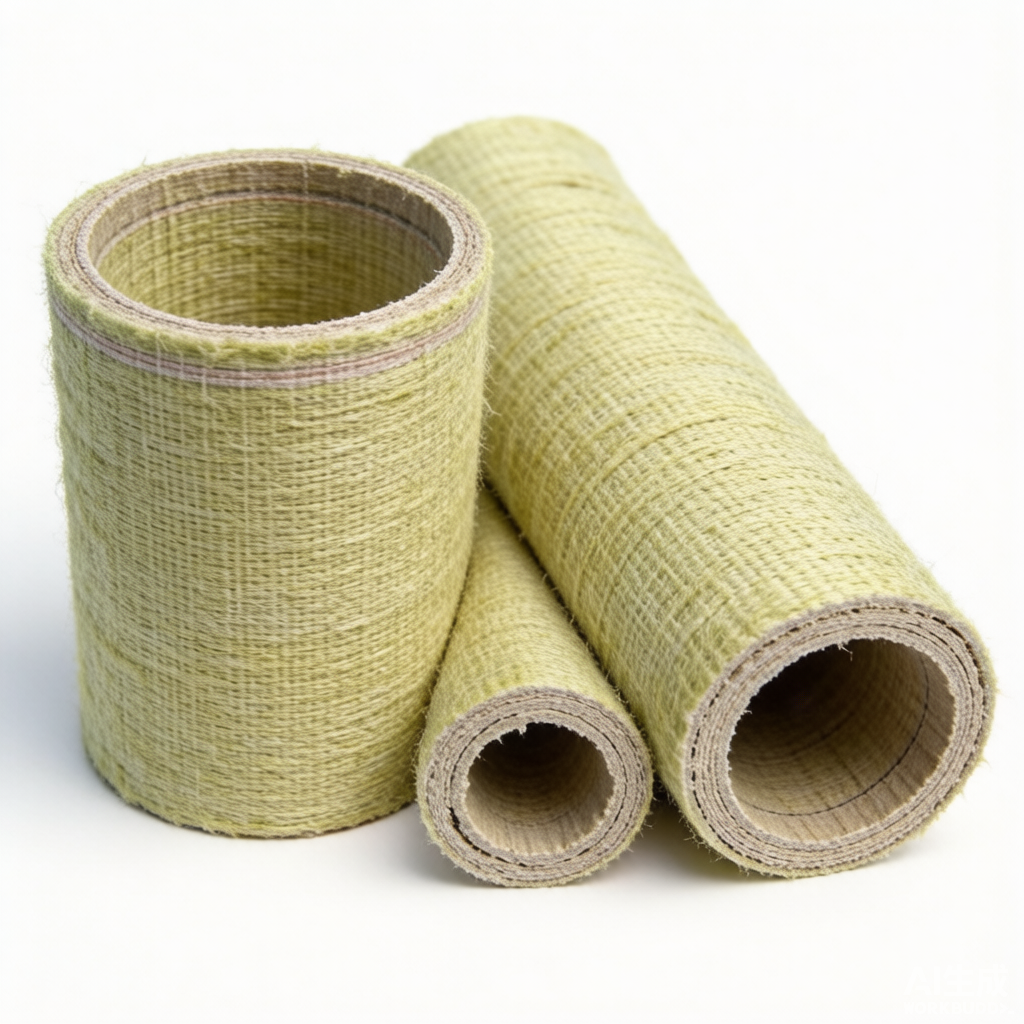

Epoxy Glass Cloth Tube is a Class 155-180 (F/H) insulating material. High strength, high temp resistance.
Application
Transformer insulating cylinder, bushing
Technical Data Sheet
| Property | Typical Value | Unit |
|---|---|---|
| Density | 1.70 – 1.95 | g/cm³ |
| Water Absorption | ≤ 0.5 | % |
| Flexural Strength | ≥ 180 | MPa |
| Compressive Strength (axial) | ≥ 100 | MPa |
| Electric Strength (perp. to wall, 90°C oil) | ≥ 12 | kV/mm |
| Inner Diameter | 10 – 300 | mm |
| Wall Thickness | 1.5 – 20 | mm |
| Flammability | V-0 | class |
Typical values for reference — please contact us to confirm specifications for your application.
Request a Quote: Please contact us for pricing, lead time and availability.
