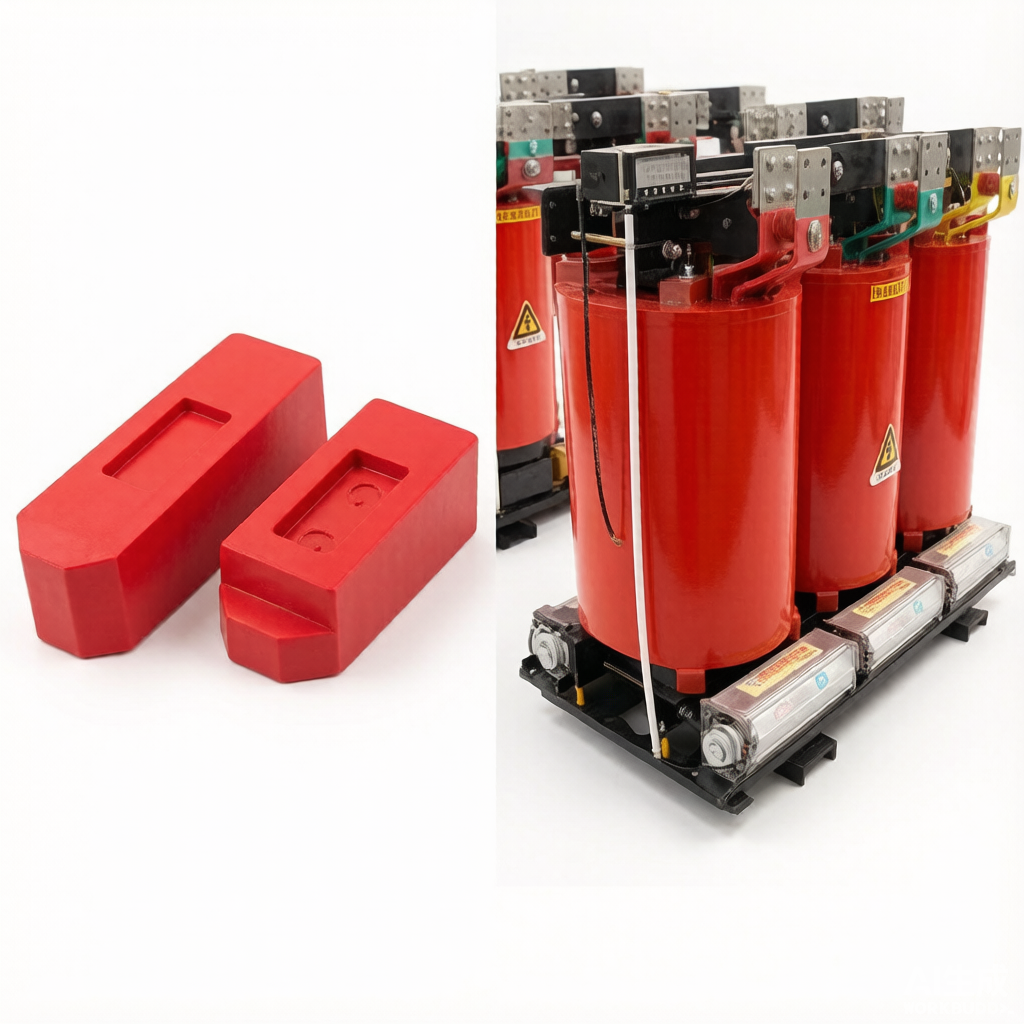

Insulating Cylinder is a Thick NMN / DMD / FR4 insulating material. Between HV and LV coils of dry-type transformer.
Application
Technical Data Sheet
| Property | Typical Value | Unit |
|---|---|---|
| Material | Transformer Pressboard (100% sulfate wood pulp) | – |
| Thermal Class | A / 105 | °C |
| Density | 1.00 – 1.30 | g/cm³ |
| Electric Strength (in transformer oil) | ≥ 35 | kV/mm |
| Electric Strength (in air) | ≥ 10 | kV/mm |
| Tensile Strength (MD) | ≥ 100 | MPa |
| Oil Absorption | ≥ 10 | % |
| Moisture Content | ≤ 6 | % |
| Inner Diameter | 50 – 1000 | mm |
| Wall Thickness | 1.0 – 8.0 | mm |
Typical values for reference — please contact us to confirm specifications for your application.
Request a Quote: Please contact us for pricing, lead time and availability.
